如何能够使用一台路由器让多个人拥有各自独立的网络（降低购买多个路由器的开销）， 如何在有多个网络接入的情况下，提高网络的体验， 以上的问题都可以归结到策略路由上，通过不同层级间的策略的组合就可以实现不同的效果
关键词：iptables，VLAN，Route Load_Balance, IP rule
设备和环境
路由器：Xiaomi R3G
系统：OpenWrt 18.06.1
网络：校园网PPPoE，中国联通4G
原理

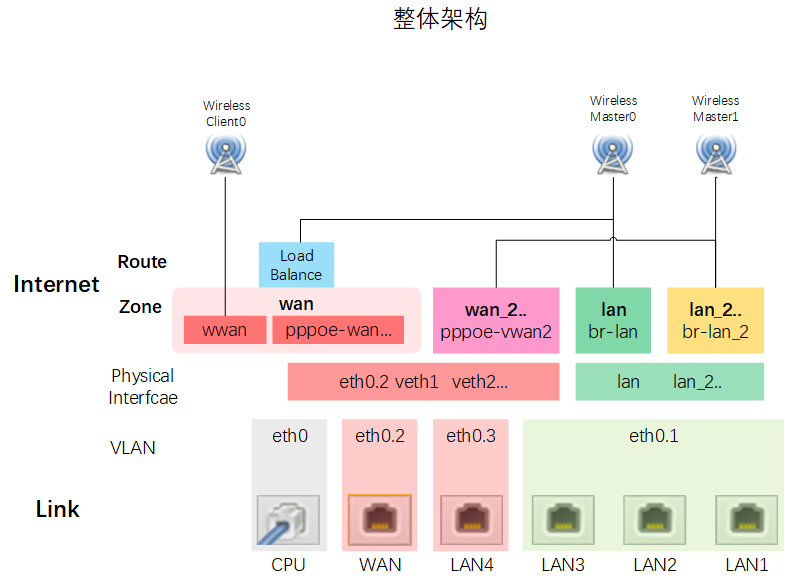

使用Linux网络防火墙iptables对虚拟的出的Interface的数据包做标记，再结合一定的规则对标记的数据包进行路由，也就是通过自定的策略路由来实现，而需要实现这种特定需求下的策略路由就必须自下而上(此处特指是路由器的网络结构)的对网络重构，具体的网络结构示意图如下：
自顶而下的对结构的解读：
Wireless Master0 和 Wireless Master1 是两个独立的无线网络AP，桥接到不同的LAN，从属于不同的子网，有不同的路由表；
Wireless Client0 是桥接自另外一个接入点的无线网络，直接桥接到WWAN，主要目的是结合有线网络，使用Linux网络防火墙iptables的FwMark功能轮流给数据包打上标记，通过路由表级别的负载均衡来实现对网络的加速和数据包的内外网分流；
两个子网通过防火墙的空间（Firewall Zone）来划分，方便管理，再对出入路由器于特定接口的数据包 使FwMark功能打上标记，之后再添加一张新的路由表负责被标记的数据包的路由，这样来自两个LAN空间的流量会转发到各自的WAN空间，图示的内外网转发也就是： lan->wan lan_2->wan_2
有线PPPoE连接单个网卡只能有一个，因为大多数路由器只有一块网卡，所以在网络接口方面需要用到虚拟网卡得到veth1，veth2…；
而虚拟网卡又坐落在VLAN之上，现在我们使用的大多数路由器都是通过VLAN来为网口进行划分的，通过设备对不同的VLAN ID的接口的标记，就可以划分出多组WAN口和LAN口，通过以上两步就可以实现单/多有线链路的接入以及对LAN口的划分；
综合以上，就是可以实现有线链路与无线桥接的负载均衡以及单个路由的复用。
注：
不同的设备和系统以及设置的名称可能不同，这里仅供原理的叙述
代码
代码部分仅供参考，因为每个人的设备的情况不一样，但是稍作修改就可以用，使用了uci方便快速配置
添加防火墙空间
echo "add firewall zone and add rules..."
uci add firewall zone 1>/dev/null
uci set firewall.@zone[2]=zone
uci set firewall.@zone[2].name=wan_2
uci set firewall.@zone[2].input=REJECT
uci set firewall.@zone[2].output=ACCEPT
uci set firewall.@zone[2].forward=REJECT
uci set firewall.@zone[2].masq=1
uci set firewall.@zone[2].mtu_fix=1
uci add firewall zone 1>/dev/null
uci set firewall.@zone[3]=zone
uci set firewall.@zone[3].name=lan_2
uci set firewall.@zone[3].input=ACCEPT
uci set firewall.@zone[3].output=ACCEPT
uci set firewall.@zone[3].forward=ACCEPT
uci add firewall forwarding 1>/dev/null
uci set firewall.@forwarding[1]=forwarding
uci set firewall.@forwarding[1].src='lan_2'
uci set firewall.@forwarding[1].dest='wan_2'
uci commit firewall
设置无线网络
这一步是设置好两个5G频段的无线信号，也可以手动设置，设置完成之后需要开启无线网络
echo "set and add wireless radio..."
uci set wireless.default-radio1.ssid='OpenWrt_5G'
uci set wireless.default-radio1.mode='ap'
uci set wireless.default-radio1.encryption='psk-mixed'
uci set wireless.default-radio1.key='key'
uci add wireless wifi-iface
uci set wireless.@wifi-iface[3]=wifi-iface
uci set wireless.@wifi-iface[3].device='radio1'
uci set wireless.@wifi-iface[3].ssid='OpenWrt_6'
uci set wireless.@wifi-iface[3].mode='ap'
uci set wireless.@wifi-iface[3].encryption='psk-mixed'
uci set wireless.@wifi-iface[3].key='key'
uci commit wireless
echo "need to call wireless radio1 up..."
安装必要的软件
先设置好系统时间，连接网络，安装软件和依赖，完成之后删除默认的负载均衡设置
#!bin/sh
uci set system.system[0].zonename='Asia/Hong Kong'
uci set system.system[0].timezone='HKT-8'
uci commit system
uci set network.wan.proto="pppoe"
uci set network.wan.username="username"
uci set network.wan.password="password"
uci commit network
ubus call network.interface.wan up
ifstatus=`ubus call network.interface.wwan status | grep \"up\" | sed "s/\"up\"://" | sed "s/,//"`
sleep 10
if [ "$telstatus" = ture ];then
echo "`date` interface.wan was successfully UP,and continum..."
else
echo "...please check your internet status and try again"
exit 0
fi
echo "try to install necessary software..."
opkg update
opkg install kmod-macvlan
opkg install kmod-ipt-nat6
opkg install luci-app-mwan3
echo "rm default setting of load_blance..."
sed -i "4,$d" /etc/config/mwan3
uci commit mwan3
添加接口
添加虚拟网卡，添加开机启动项，桥接无线与LAN口，自订防火墙规则，经过这一步之后，单路由的复用就可以使用了
ip link add link eth0.2 name veth_wan_2 type macvlan
echo "add start up script..."
sed -i '$d' /etc/rc.local
cat > /etc/rc.local << EOF
ip link add link eth0.2 name veth_wan_2 type macvlan
ip rule add fwmark 0x6 table 300
ip route add default via 10.170.72.254 dev pppoe-wan_2 table 300
exit 0
EOF
echo "add interfaces..."
uci set network.wan_2=interface
uci set network.wan_2.proto='pppoe'
uci set network.wan_2.username="username_2"
uci set network.wan_2.password="password_2"
uci set network.wan_2.defaultroute="0"
uci set network.wan_2.ifname="veth_wan_2"
uci set network.lan_2=interface
uci set network.lan_2.type='bridge'
uci set network.lan_2.proto='static'
uci set network.lan_2.ipaddr='192.168.2.1'
uci set network.lan_2.netmask='255.255.255.0'
uci set network.lan_2.ip6assign='60'
uci commit network
brctl addbr br-lan_2
brctl addif br-lan wlan1-1
uci set dhcp.lan_2=dhcp
uci set dhcp.lan_2.start='100'
uci set dhcp.lan_2.leasetime='12h'
uci set dhcp.lan_2.limit='150'
uci set dhcp.lan_2.interface='lan_2'
uci set dhcp.lan_2.ra_default='1'
uci set dhcp.lan_2.dhcpv6='server'
uci set dhcp.lan_2.ra='server'
uci set dhcp.lan_2.ra_management='1'
uci add_list firewall.@zone[2].network=wan_2
uci add_list firewall.@zone[2].network=wan_2_6
uci add_list firewall.@zone[3].network=lan_2
echo "add firewall mark..."
echo "ip6tables -t nat -I POSTROUTING -s \`uci get network.globals.ula_prefix\` -j MASQUERADE" >> /etc/firewall.user
echo "iptables -t mangle -A PREROUTING -j MARK --set-mark 6 -i pppoe_wan_2" >> /etc/firewall.user
echo "iptables -t mangle -A PREROUTING -j MARK --set-mark 6 -i br-lan_2" >> /etc/firewall.user
uci commit firewall
/etc/init.d/firewall restart
ubus call network.interface.wan_2 up
ubus call network.interface.lan_2 up
ip rule add fwmark 0x6 table 300
ip route add default via 10.170.72.254 dev pppoe-wan_2 table 300
echo "mlan setting is finished,try to enable two wireless radio and enjoy"
负载均衡设置
这里只是采用了最基本的负载均衡设置，可以自行的添加接口，这里也附上多链路路由负载均衡的配置脚本供参考
对于分流的比例mwan3.member_$INTERFACE.metric可以根据具体的网络状况进行调节
uci set mwan3.wan=interface
uci set mwan3.wan.enabled='1'
uci set mwan3.wan.track_ip='10.170.72.254'
uci set mwan3.wan.track_ip='223.5.5.5'
uci set mwan3.wan.reliability='1'
uci set mwan3.wan.count='1'
uci set mwan3.wan.timeout='2'
uci set mwan3.wan.interval='1'
uci set mwan3.wan.down='1'
uci set mwan3.wan.up='1'
uci set mwan3.wwan=interface
uci set mwan3.wwan.enabled='1'
uci set mwan3.wwan.track_ip='223.5.5.5'
uci set mwan3.wwan.track_ip='223.6.6.6'
uci set mwan3.wwan.reliability='1'
uci set mwan3.wwan.count='1'
uci set mwan3.wwan.timeout='2'
uci set mwan3.wwan.interval='1'
uci set mwan3.wwan.down='1'
uci set mwan3.wwan.up='1'
uci commit mwan3
uci set mwan3.member_wwan=member
uci set mwan3.member_wwan.interface="wwan"
uci set mwan3.member_wwan.metric='1'
uci set mwan3.member_wwan.weight='1'
uci set mwan3.member_wan=member
uci set mwan3.member_wan.interface="wan"
uci set mwan3.member_wan.metric='1'
uci set mwan3.member_wan.weight='1'
uci commit mwan3
uci set mwan3.load_blance=policy
uci set mwan3.load_blance.last_resort='unreachable'
uci add_list mwan3.load_blance.use_member="member_wwan"
uci add_list mwan3.load_blance.use_member="member_wan"
uci commit mwan3
uci set mwan3.default_rule=rule
uci set mwan3.default_rule.use_policy='load_blance'
uci set mwan3.default_rule.proto='all'
uci commit mwan3
/etc/init.d/mwan3 restart
hotplug脚本
因为路由表的修改是会因为接口的连接/断开而变化/失效的，故需要添加热插拔脚本来维持路由表
#!/bin/sh
[ "$INTERFACE" = wan_2 ] || exit 0
[ "$ACTION" = ifup ] || exit 0
ip route add default via 10.170.72.254 dev pppoe-wan_2 table 300
logger -t dualroute "wan_2 is up again,table is upgraded"
